Tuning kit PREMIUM for Weihrauch HW35

The kit with extensive equipment was developed together with the English author and tuner Lyndon Lewington from ARC Tuning as well as Jonas Fehlhaber, multiple-time world champion in the HFT Springer. The well-known and proven V-Mach tuning kit by Steve Pope served as a template. All components are individually and elaborately matched using a high-quality V-Mach piston spring made of Japanese valve spring steel. The spring and system are decoupled by Teflon Jonasscheiben to absorb and compensate for the rotational forces of the spring. The guides have been further developed and are made of impact-resistant POM-C instead of delrin/POM-H as with V-Mach

• leads to a calmer, improved impact
• Precision increase
• Guides individually matched to the spring
• Spring oscillation (Twang) minimized
• Spring decoupled from the system
• Long V-Mach piston spring
• High-quality workmanship
• Spring ends filed and deburred
• Extensive accessories

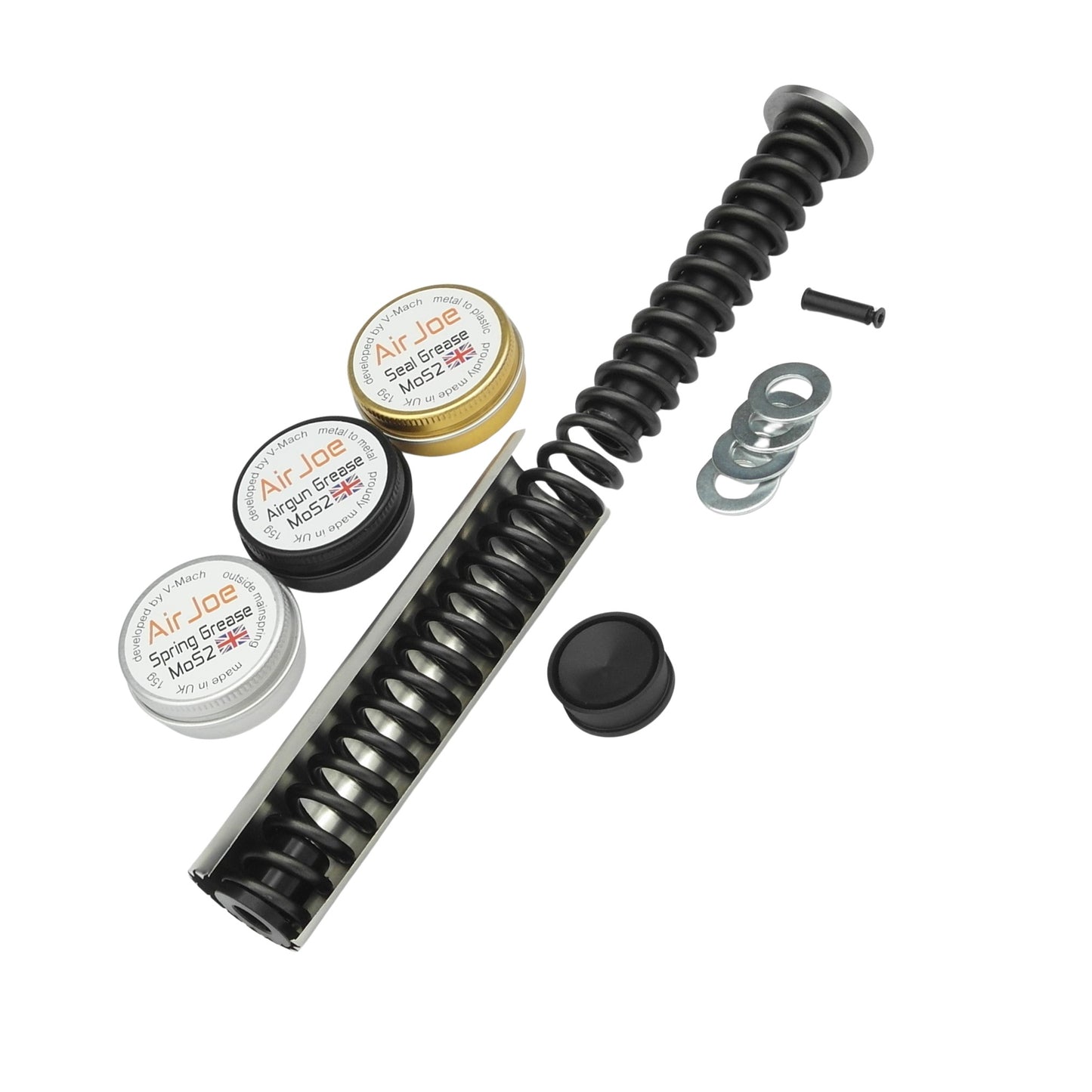

Scope of delivery:
V-Mach piston spring
rear spring guide made of POM-C
front spring guide (tophat) made of POM-C
5 Teflon Jonasscheiben
3 cans of 15g V-Mach grease
Brush
Stainless steel piston inner sleeve
self-lubricating piston seal
screw-in pivot pin

Click here for the installation instructions
Info about our V-Mach springs
