HotJoe silencer for .50 caliber

HotJoe silencer for Megalodon and Challenger

The largest and most elaborately designed tuning silencer in the AirJoe series. With a diameter of 50mm and a length of 278mm, it achieves outstanding sound reduction. High-quality, robust construction from black anodized aircraft-grade aluminum. Screws onto either the barrel shroud of your AEA Challenger or the threaded barrel of your Megalodon.

Construction

TacJoe, HotJoe and FatJoe have the same structure and differ only in design.

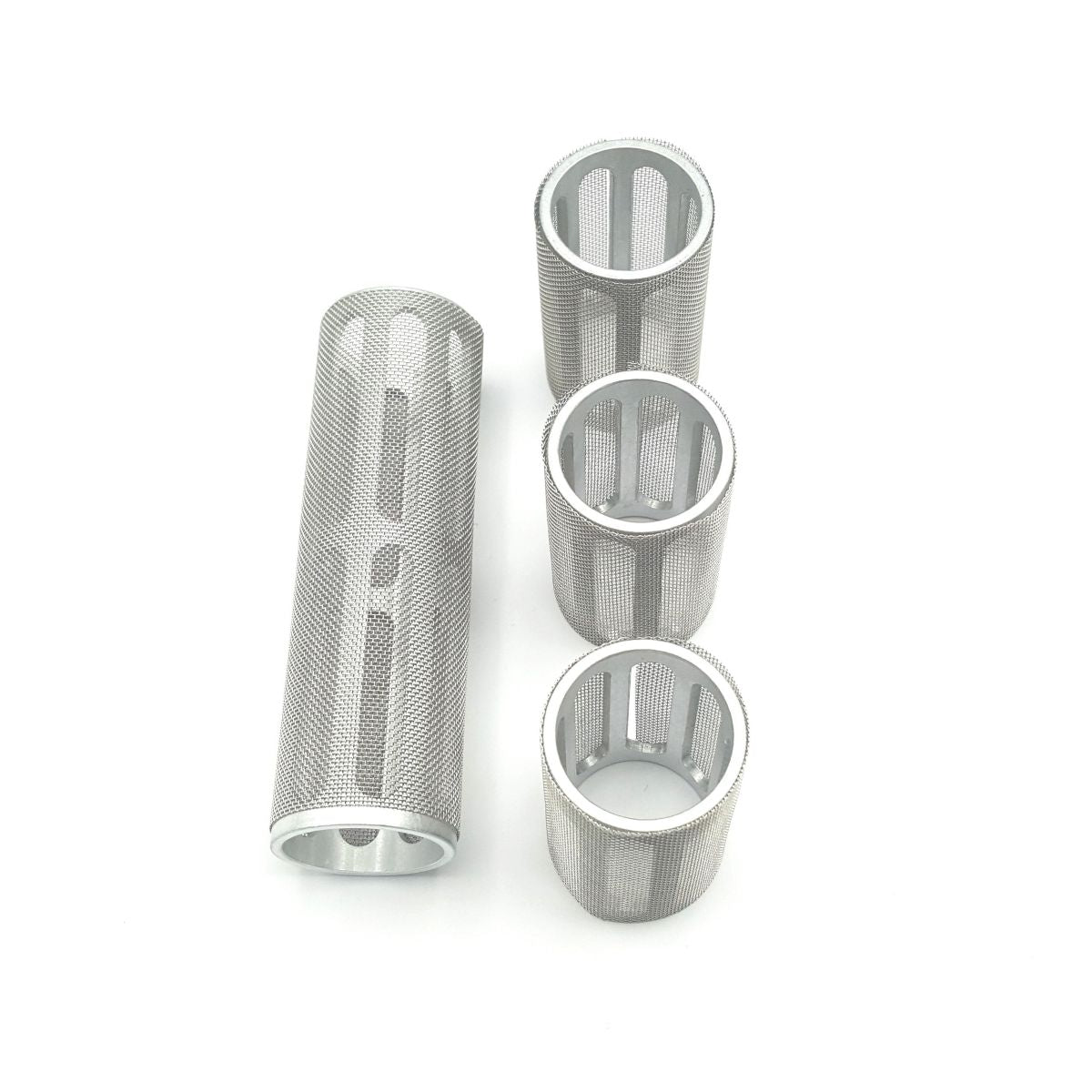

Our The 50mm HotJoe is equipped with four chambers, robust aluminum "curlers" combined with a fine-mesh stainless steel wire screen. It is double-wrapped with sound-absorbing porous acoustic felt for maximum durability and damping performance. The first expansion chamber is approximately twice the volume of the three subsequent chambers. Three aluminum baffles and the end cap with a 15mm bore reliably and effectively filter out high, aggressive frequencies.

The silencer is only for license-free air rifles marked with an "F" symbol. Depending on the measurement method, the sound reduction is up to 40 dB. This gives the gunshot a pleasant, muffled sound.
HotJoe and TacJoe are absolutely identical in construction except for the design.

Connections
The widely used M18x1 connection fits many barrels besides the Megalodon. For the Challenger barrel shroud, you need an M30.5x1 connection.

Extension
The extension is approximately 172 mm long and is simply screwed on. To do this, remove the HotJoe's connection cap, screw in the extender, and attach the connection cap to the extender – that's it. The extender is internally identical to the HotJoe and consists of two chambers.

Legal
Proof of age required, please send it directly to info@airjoe.de upon purchase! Sale only to persons 18 years of age or older. In Germany, only for use with license-free air rifles.

Features
high-quality workmanship
appealing design
aircraft aluminum
classic 4-chamber system
excellent attenuation of 40 dB

Technical data
Length: 278 mm
Weight: 420 g
Outer diameter: 50 mm
Caliber: up to caliber .50
Bore: 15 mm
Connection thread: as selected
Chambers: 4

Scope of delivery
HotJoe silencer in screw box
