Silencer HotJoe 14mm for AEA HP MAX

HotJoe silencer 14mm bore for AEA HP MAX I+II

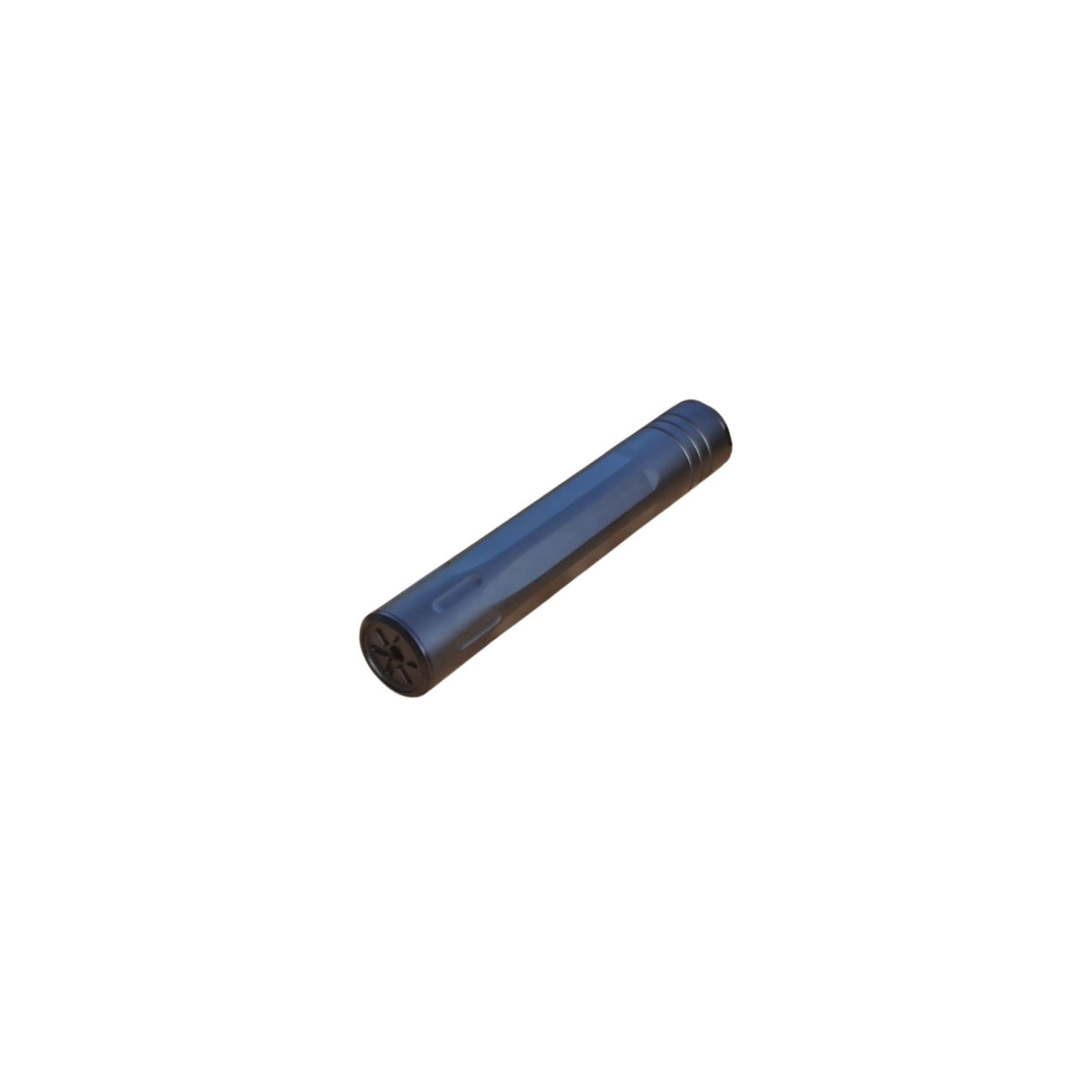

The largest tuning silencer with the most complex design from the AirJoe series. With a diameter of 50mm and a length of 278mm, it achieves excellent damping performance. High-quality, stable workmanship made from black anodized aircraft aluminum. For screwing onto the barrel jacket of your German AEA HP MAX I and II.

Construction
While monocore systems have become established for hot gas cylinders, the felt-wrapped chamber system has proven itself in the PCP sector for decades.

Our 50mm HotJoe is equipped with 4 chambers, sturdy aluminum "curlers" combined with a fine-mesh stainless steel wire mesh. Double wrapped with sound-absorbing porous acoustic felt for maximum stress and damping performance. The 1st expansion chamber is, as standard, approximately twice as large as the 3 subsequent chambers. 3 aluminum baffle plates and the end cap with 14 mm bore reliably and effectively filter the high, aggressive frequencies.

The silencer is only for F air guns that do not require a permit. The silencer performance is up to 40 dB, depending on the measuring method. This gives the sound of the shot a pleasant, dull tone and makes your HP MAX suitable for use in the neighborhood.

connections
Choose which connection you prefer for your HP MAX. We recommend the direct M30.5x1 connection. Alternatively, there is the M18x1 thread for many common air rifles, but you will need an additional M30.5x1 adapter for your HP MAX.

extension
The extension is approx. 172 mm long and is simply screwed on. To do this, remove the connection cap of the HotJoe, screw in the extender and mount the connection cap on the extender - done. The internals of the extender are identical to the HotJoe and consist of 2 chambers.

Legal
Proof of age required, please send it to info@airjoe.de when purchasing! Only available to people aged 18 and over. In Germany only for use with F-air guns that do not require a permit.

features
high-quality workmanship
attractive design
aircraft aluminum
classic 4-chamber system
excellent attenuation of around 40 dB

Technical data
Length: 278 mm
Weight: 420 g
Outer diameter: 50 mm
Caliber: up to 9 mm
Bore: 14 mm
Connection thread: optional
chambers: 4

scope of delivery
HotJoe silencer in screw box
