HW77/97 guided tuning piston

HW77/97 guided tuning piston

Regular price €119,95
Regular price Sale price €119,95
-Liquid error (snippets/price line 128): divided by 0% OFF Sold out
Exempt from VAT according to § 19 of the VAT Act (small business regulation) Shipping costs Germany: €4.99 EU: €9.99 Free shipping from €270
variant
Auf Lager – in 2-5 Werktagen bei dir

Teflon-guided HW77/97 tuning piston

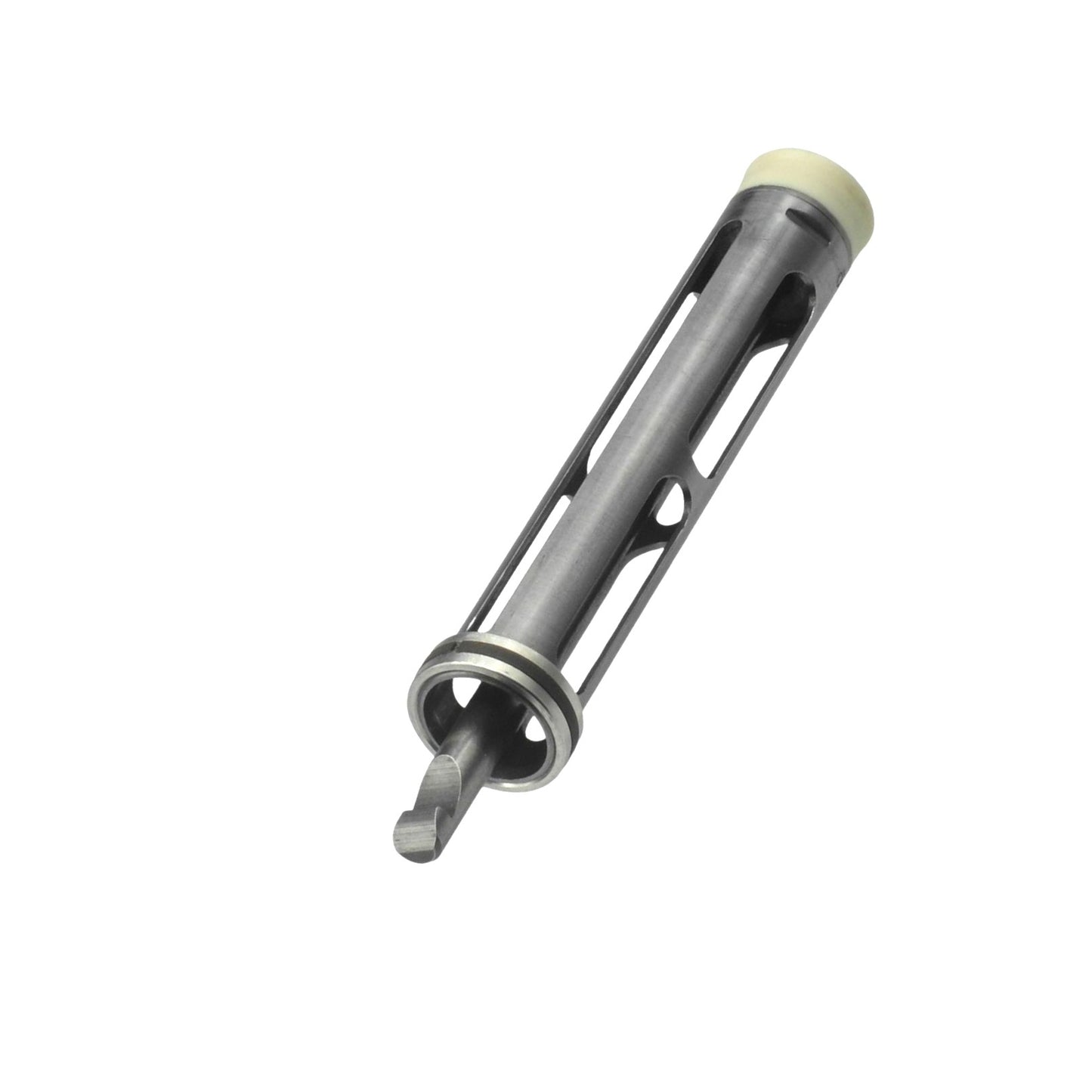

Original HW77/97 pistons from Weihrauch with six CNC-milled longitudinal slots for weight optimization. The original weight of approximately 260g has been reduced to approximately 224g. This corresponds to the weight of the previously installed 25mm pistons. The weight reduction results in less recoil and thus improved shooting performance. Installation is simple, but the V0 rating must be checked afterward.

Additionally, an aluminum ring was shrunk onto the bearing for optimized guidance within the system. A high-friction, coated PTFE ring, also known as Teflon, runs inside this. The bronze coating makes the PTFE more resistant to deformation and wear.

Bearing the piston prevents metal-to-metal contact, guides it more precisely and reduces the noise of the shot.

The piston with bearings only fits into a compression sleeve with a standard length of 155mm in variant C (short stroke 20mm). For standard seals, the compression sleeve must be shortened by 10mm to 145mm.

Variant A with the 10mm high original Weihrauch piston seal

Variant B with the 10mm high self-lubricating AirJoe piston seal

Variant C with the 20mm high self-lubricating short stroke piston seal
Variants B + C INCLUDING an AirJoe piston inner sleeve made of stainless steel and the original Weihrauch piston seal 26mm.

· replaces the standard incense flask
·         significant weight loss
·         Teflon-guided
·         improves shooting behavior
·         easy installation/replacement

Scope of delivery:
Variant A:
guided tuning piston for Weihrauch HW77/97

+ Frankincense Seal

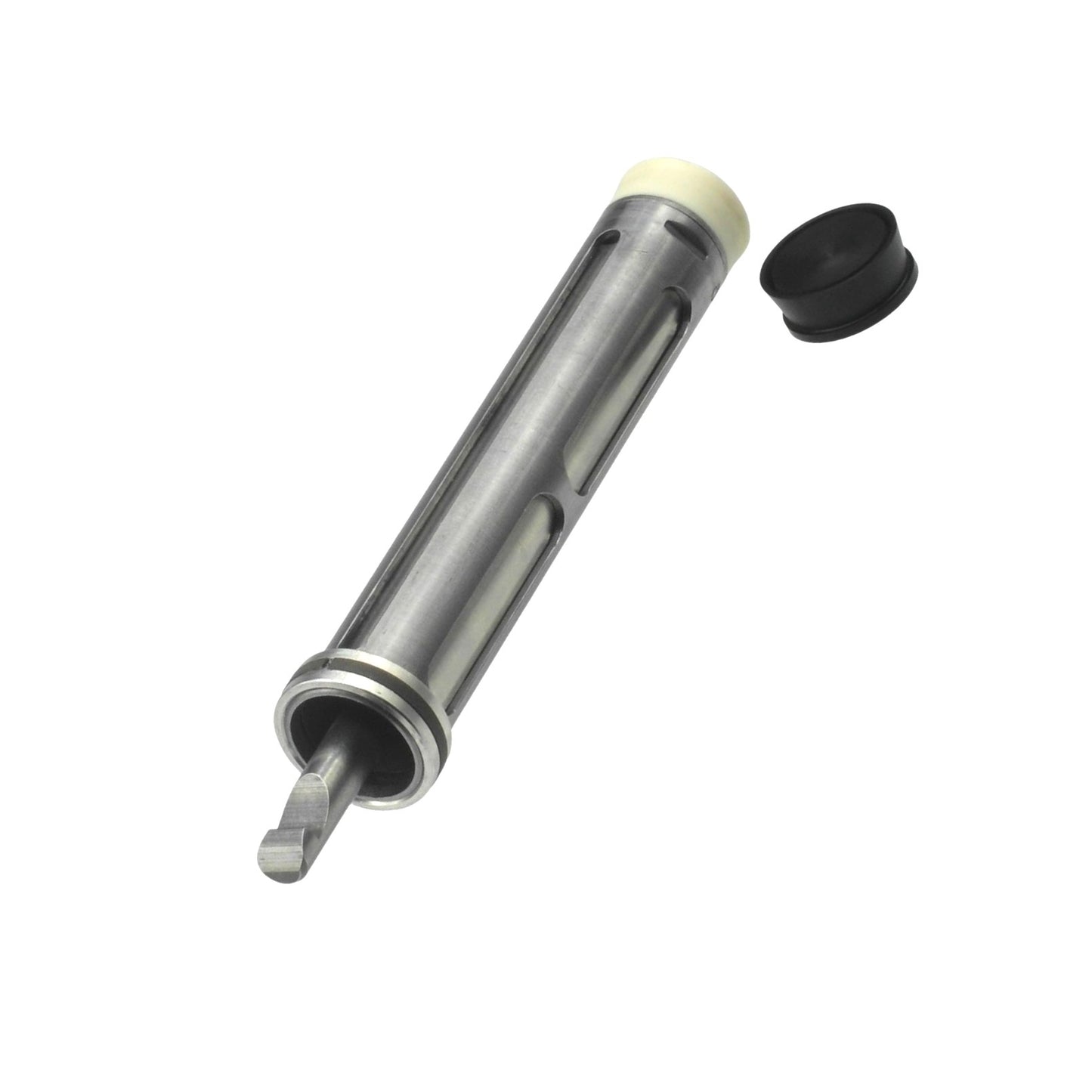

Variant B:
guided tuning piston for Weihrauch HW77/97
+ AirJoe seal
+ Frankincense Seal
+ inner sleeve

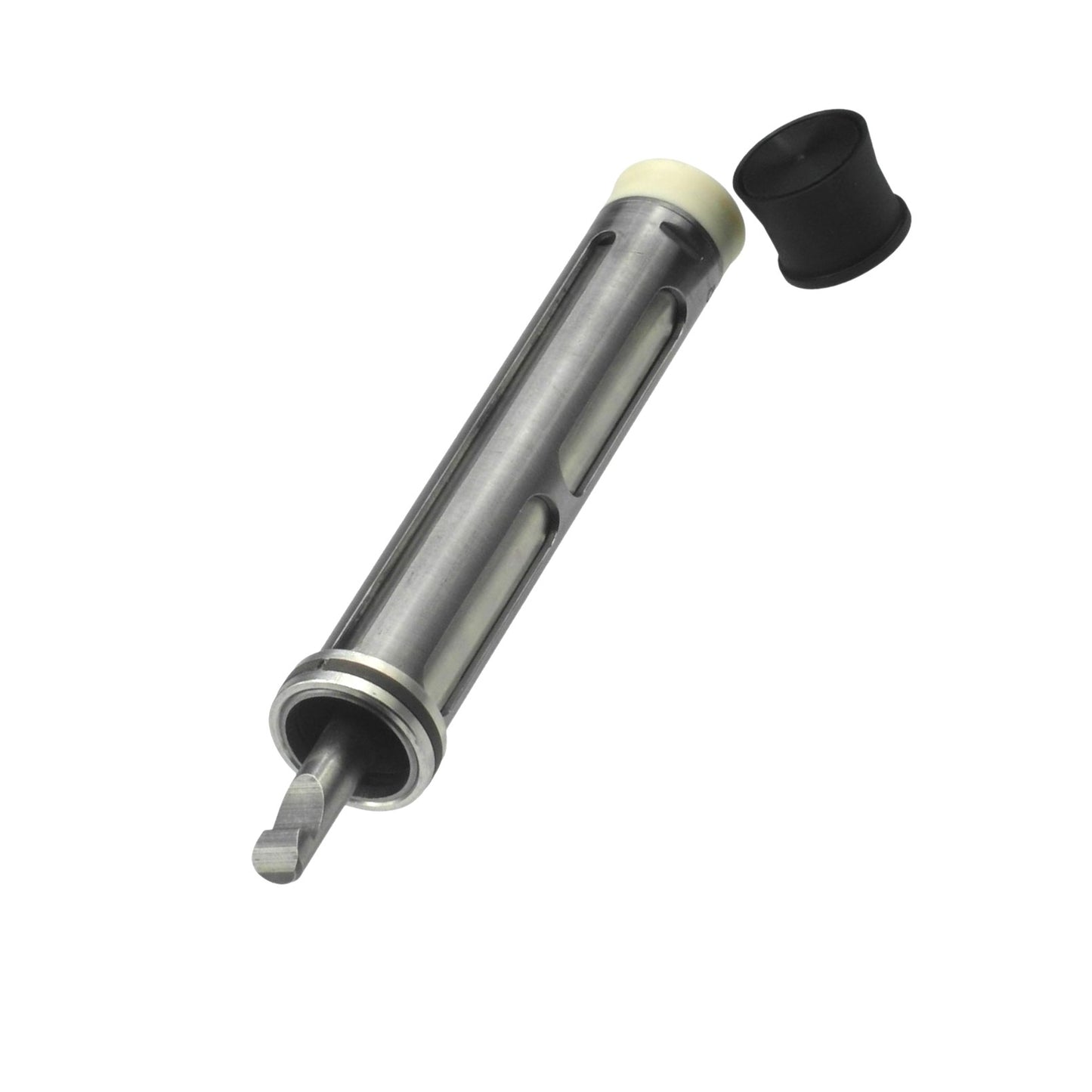

Variant C:
guided tuning piston for Weihrauch HW77/97
+ AirJoe seal short stroke
+ Frankincense Seal
+ inner sleeve
